Overview

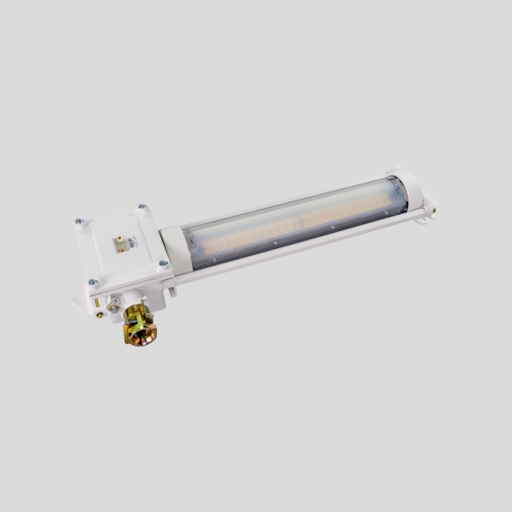

Heavy-duty, flame-proof luminaire specifically designed for use in underground mining and tunneling. Thanks to its glare-reducing diffusing screen, it provides uniform and comfortable illumination even in hazardous areas. The integrated junction box, together with integrated wall mounting, allows easy and safe inline installation.
Technical Specifications
Power Options
15W | 30W
Luminous Flux
1.500lm | 3.000lm
Color Temperature
4000K
Color Rendering Index
CRI >80
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Wall | Surface
Housing
Housing made of powder coated steel
Dimensions
510x285x115mm (15W) | 700x285x115mm (30W)
Protection
IP65 |
IK10 |
Explosion Proof
Light Distribution
OPAL 100°
Controls
ON/OFF Switchable
