Overview

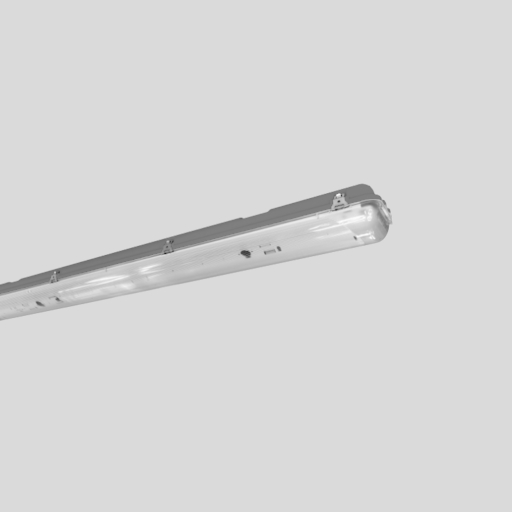

High-performance, compact, ex-proof LED luminaire for surface hazardous areas. With its wide range of power ratings, housing lengths, and lenses, it is a perfect solution for flexible illumination of warehouses and working areas. The robust glass-reinforced polyester housing with polycarbonate diffuser ensures high impact resistance and easy installation.
ATEX Marking
II 2G Ex db eb ib mb IIC T6/T5 Gb
II 2D Ex tb IIIC T85°C Db
Need help decoding the ATEX marking? Visit the ATEX Wiki.
Technical Specifications
Power Options
23W | 45W | 56W
Luminous Flux
2.833lm | 6.077lm | 7.804lm
Color Temperature
4000K
Color Rendering Index
CRI >80
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Wall | Ceiling | Surface
Housing
Glass Fibre Reinforced Polyester (GRP) | Polycarbonate Lens | Signal Yellow (RAL1003)
Dimensions
660x145x101mm (23W) | 1277x145x101mm (45W) | 1573x145x101mm (56W)
Protection
IP66/67 |
IK10 |
Explosion Proof
Light Distribution
OPAL 160°
Controls
ON/OFF Switchable | Emergency
