Overview

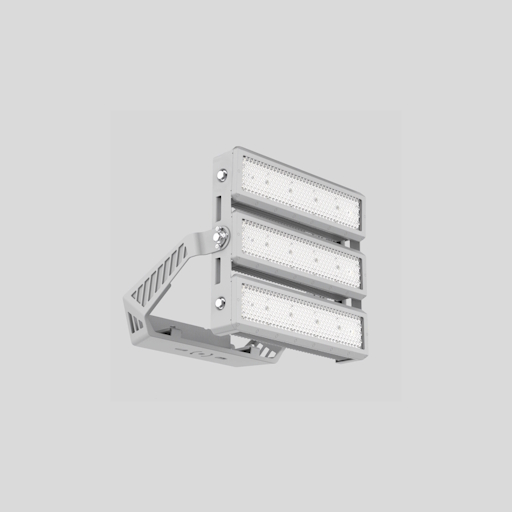

High-performance floodlights for powerful and precise illumination of sports facilities, industrial areas, and large outdoor areas. Suitable for surface mounting on walls and ceilings, as well as mast mounting. Design with removable ballast box. Swivel mounting bracket made of galvanized sheet iron for flexible light control. Passive cooling through integrated cooling fin structure. Highly efficient and durable light-emitting diodes with uniform light distribution. Optical polycarbonate (PC) lens system with individual lenses.
Technical Specifications
Power Options
750W | 1250W | 1500W | 1800W
Luminous Flux
103.200lm | 180.900lm | 205.200lm | 241.400lm
Color Temperature
3000K | 4000K | 5700K
Color Rendering Index
CRI >70
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Ceiling | Wall | Mast | Surface | Pole
Housing
Housing made of die-cast aluminum
Dimensions
643x280x270mm (750W) | 658x643x339mm (1250W, 1500W) | 658x743x339mm (1800W)
Protection
IP66 |
IK08
Light Distribution
SPOT 12° | SPOT 15° | SPOT 25° | MEDIUM 50° | ASYMMETRIC 20°x40° | ASYMMETRIC 22°x50° | ASYMMETRIC 30°x108° | ASYMMETRIC 26°x115°
Controls
ON/OFF | 0-10V Dim | DALI Dim
