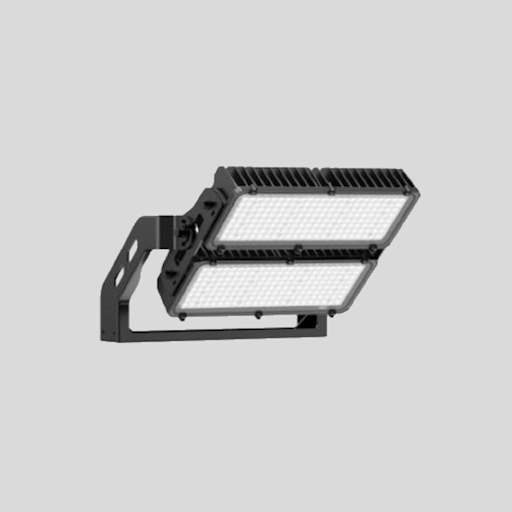

Overview
High-performance floodlights designed for use in maritime environments, heavy industry, and sports applications. Extremely robust and durable housing for the harshest environmental conditions and input voltage ranges up to 400 VAC and 700 VDC. Individually swiveling light units allow for expanded light distribution. Highly efficient and long-lasting light-emitting diodes with uniform light distribution and high luminous flux packages. Integrated, replaceable ballast with temperature monitoring.
Technical Specifications
Power Options
300W | 350W | 400W | 450W | 480W | 600W | 700W | 800W | 900W | 960W
Luminous Flux
43.500lm | 50.750lm | 58.000lm | 65.250lm | 69.600lm | 87.000lm | 101.500lm | 116.000lm | 130.500lm | 139.200lm
Color Temperature
3000K | 4000K | 5000K
Color Rendering Index
CRI >70 (5000~5700K) | CRI >80
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Ceiling | Wall | Pole | Crane | Surface
Housing
Housing made of die-cast aluminum
Dimensions
479x220x224mm (300W, 350W, 400W) | 479x228x224mm (450W, 480W) | 516x368x332mm (600W, 700W, 800W) | 510x409x332mm (900W, 960W)
Protection
IP66 |
IK08
Light Distribution
Asymmetric 22°x 78°
Controls
ON/OFF | 1-10V Dim
