Overview

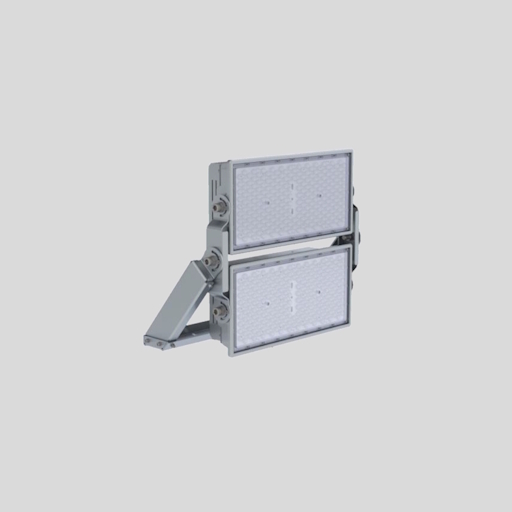

High-performance floodlights designed for use in maritime environments, heavy industry, and sports applications. Extremely robust and durable housing for the harshest environmental conditions and input voltage ranges up to 400 VAC and 700 VDC. Individually swiveling light units allow for expanded light distribution. Highly efficient and long-lasting light-emitting diodes with uniform light distribution and high luminous flux packages. Integrated, replaceable ballast with temperature monitoring.
Technical Specifications
Power Options
100W | 130W | 150W | 180W | 200W | 220W | 250W | 280W | 320W | 350W | 500W | 1000W | 1500W
Luminous Flux
18.000lm | 22.620lm | 25.200lm | 28.800lm | 34.000lm | 36.300lm | 40.500lm | 44.800lm | 49.600lm | 60.000lm | 84.000lm | 160.000lm | 240.000lm
Color Temperature
2700K | 3000K | 4000K | 5000K | 5700K
Color Rendering Index
CRI >70 | CRI >80
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Ceiling | Wall | Pole | Crane
Housing
Housing made of die-cast aluminum
Dimensions
427x309x109mm (100W, 130W, 150W, 180W) | 414x276x158mm (200W, 220W, 250W, 280W, 320W) | 561x293x146mm (350W, 500W) | 663x545x294mm (1000W) | 633x832x441mm (1500W)
Protection
IP66 |
IK10
Light Distribution
SPOT 15° | SPOT 30° | MEDIUM 60° | WIDE 90°
Controls
ON/OFF | 0-10V Dim | Zigbee
