Overview

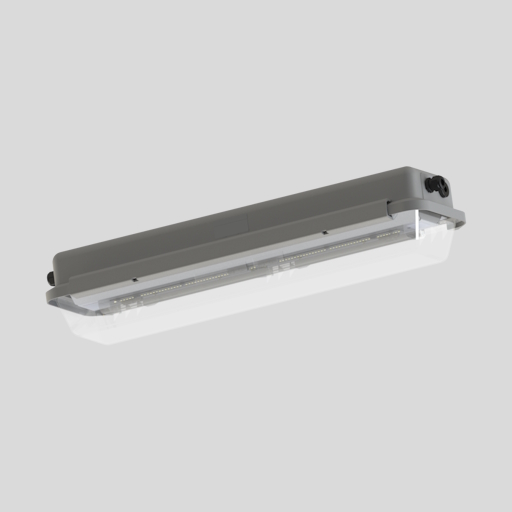

High-performance Ex-proof luminaire designed for use in warehouses, production plants, refineries, and in underground mining and tunneling (IM2 version). Its high IP and IK ratings ensure maximum safety, even in the harshest conditions. Different input voltages and power options available ensure high versatility of this luminaire.
ATEX Marking
I M2 Ex eb ib mb I Mb
II 2G Ex eb ib mb IIC T5 Gb
II 2D Ex db eb ib mb IIC T6/T5 Gb
II 2D Ex tb IIIC T80°C Db
II 3G Ex ec IIC T6/T5 Gc
Need help decoding the ATEX marking? Visit the ATEX Wiki.
Technical Specifications
Power Options
20W | 28W | 37W | 45W | 40W | 48W | 74W | 90W
Luminous Flux
2.681lm | 3.696lm | 4.960lm | 5.726lm | 5.280lm | 6.336lm | 9.768lm | 11.880lm
Color Temperature
4000K
Color Rendering Index
CRI >80
Color Consistency
Initial MacAdam 4-5 SDCM
Mounting
Wall | Ceiling | Pipe | Eyelet | Surface | Suspended
Housing
Housing made of fiber-reinforced polyester
Dimensions
745x209x147mm (20W, 28W, 37W, 45W) | 1352x209x147mm (40W, 48W, 74W, 90W)
Protection
IP66/67 |
IK10 |
Explosion Proof
Light Distribution
CLEAR 105°
Controls
ON/OFF Switchable | Emergency (Battery)
