Overview

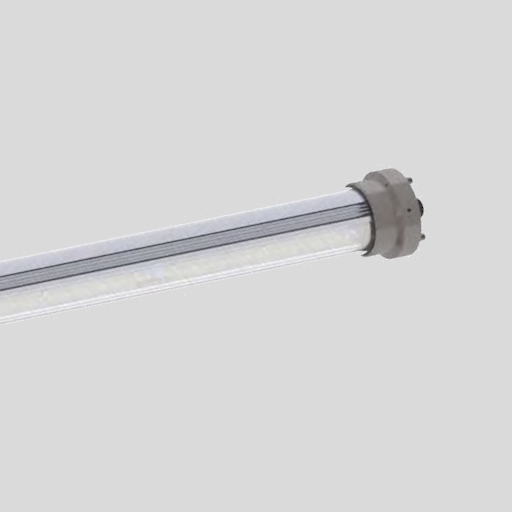

Compact, heavy-duty luminaire for safe and efficient lighting in hazardous surface zones. It is particularly suitable for emergency lighting, as it may feature an integrated emergency sign.
ATEX Marking
II 2G Ex eb mb ib op is IIC T5 Gb
II 2D Ex tb op is IIIC T77°C Db
Need help decoding the ATEX marking? Visit the ATEX Wiki.
Technical Specifications
Power Options
12W | 23W | 45W | 56W
Luminous Flux
1.475lm | 2.996lm | 5.524lm | 7.028lm
Color Temperature
4000K
Color Rendering Index
CRI >80
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Wall | Ceiling | Surface | Suspended
Housing
Housing made of anodized aluminium and tempered glass
Dimensions
Ø104x460mm (12W) | Ø104x760mm (23W) | Ø104x1300mm (45W) | Ø104x1600mm (56W)
Protection
IP66/67 |
IK10 |
Explosion Proof
Light Distribution
OPAL 120°
Controls
ON/OFF Switchable | Emergency
