Overview

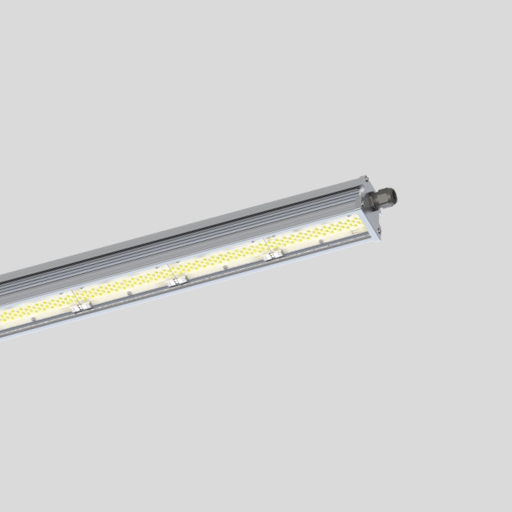

High-performance, elegant, ex-proof luminaire for efficient lighting in hazardous surface areas. Its housing, made from anodized aluminium with a tempered glass cover and silicone seals, ensures improved durability and high resistance in aggressive industrial environments.
ATEX Marking
II 2G Ex eb ib mb op is IIC T5 Gb
II 2D Ex tb op is IIIC T85°C Db
Need help decoding the ATEX marking? Visit the ATEX Wiki.
Technical Specifications
Power Options
15W | 30W | 45W | 60W
Luminous Flux
2.415lm | 4.830lm | 7.246lm | 9.661lm
Color Temperature
4000K
Color Rendering Index
CRI >80
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Wall | Ceiling | Pipe | Surface
Housing
Housing made of anodized alluminium
Dimensions
300x88x70mm (15W) | 600x88x70mm (30W) | 900x88x70mm (45W) | 1,150x88x70mm (60W)
Protection
IP66 |
IK08 |
Explosion Proof
Light Distribution
CLEAR 115°
Controls
ON/OFF Switchable | Emergency
