Overview

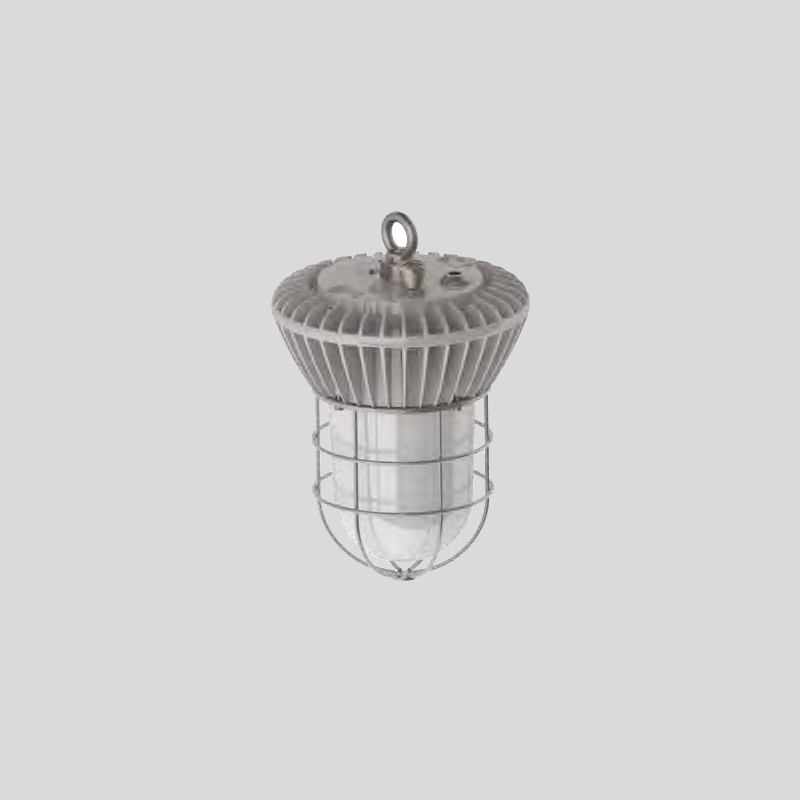

High-performance, compact, ex-proof luminaire. Built with a hermetically sealed housing featuring a die-cast aluminium body and polycarbonate diffuser. It ensures easy and flexible installation thanks to its versatile mounting options, making it ideal for different sectors.
ATEX Marking
II 2G Ex eb ib mb op ist IIC T5 Gb
II 2D Ex tb op ist IIC T95°C Db
Need help decoding the ATEX marking? Visit the ATEX Wiki.
Technical Specifications
Power Options
20W | 30W | 40W | 50W | 60W | 70W | 80W
Luminous Flux
2.906lm | 4.344lm | 5.738lm | 7.032lm | 8.376lm | 10.364lm | 11.757lm
Color Temperature
4000K
Color Rendering Index
CRI >80
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Wall | Ceiling | Pipe | Surface | Suspended
Housing
Housing made of die-cast aluminum
Dimensions
Ø230x320mm
Protection
IP66/67 |
IK08 |
Explosion Proof
Light Distribution
OPAL 120°
Controls
ON/OFF Switchable | Emergency
