Overview

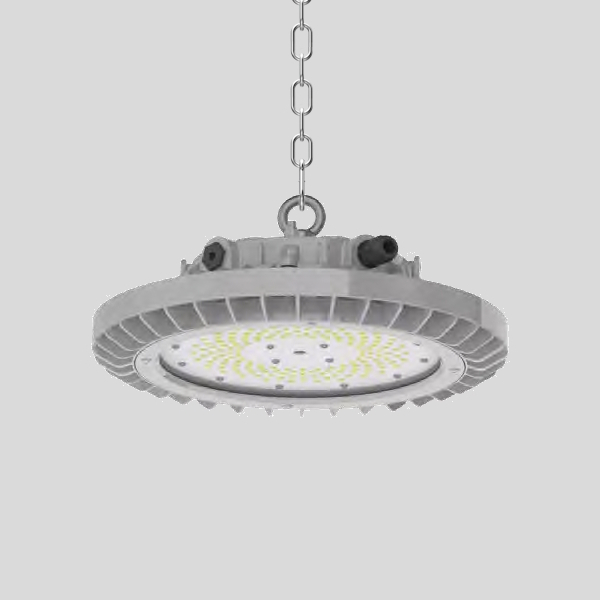

High-performance, ex-proof luminaire designed for surface hazardous environments such as industrial halls, processing plants, and warehouses. It is available in different versions for various ex-classified zones, in both floodlight and high-bay configurations. The compact aluminum housing with tempered glass lens provides high ingress and impact protection, ensuring enhanced heat dissipation. A wide range of accessories expands its flexibility for different installation scenarios.
ATEX Marking
II 2G Ex eb ib mb op is IIC T5 Gb
II 2D Ex tb op is IIIC T95°C Db
II 2G Ex db eb ib mb op is IIC T5 Gb
II 2G Ex eb ib mb op is IIC T4 Gb
II 2D Ex tb op is IIIC T121°C Db
Need help decoding the ATEX marking? Visit the ATEX Wiki.
Technical Specifications
Power Options
40W | 60W | 80W | 100W | 120W | 140W | 150W | 160W
Luminous Flux
6.400lm | 9.600lm | 12.800lm | 16.000lm | 19.200lm | 22.400lm | 24.000lm | 25.600lm
Color Temperature
4000K
Color Rendering Index
CRI >80
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Wall | Ceiling | Surface
Housing
Aluminum Body | Tempered Glass | Signal Yellow (RAL1003)
Dimensions
Ø380x125mm
Protection
IP66/67 |
IK10 |
Explosion Proof
Light Distribution
CLEAR 145° | CLEAR 60° | WITH REFLECTOR
Controls
ON/OFF Switchable | Emergency (Battery)
