Overview

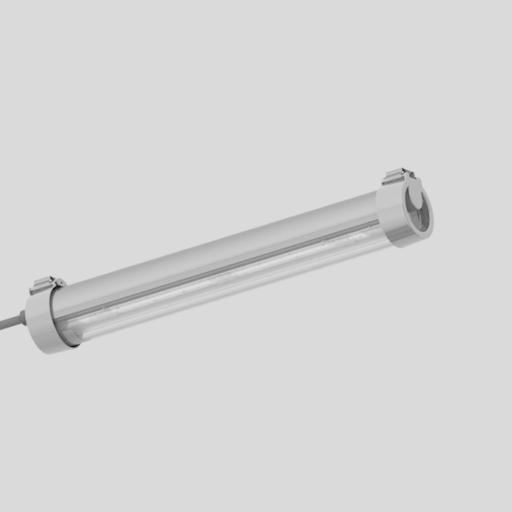

High-performance, ex-proof luminaire with enhanced resistance to aggressive chemicals, salt, and humidity. The housing and optics are made entirely of durable PMMA, and the luminaire is fully sealed to ensure an IP66/67 rating, while ensuring safe operations in hazardous zones.
ATEX Marking
II 2G Ex eb ib mb IIC T6 Gb
II 2D Ex tb IIIC T85°C Db
Need help decoding the ATEX marking? Visit the ATEX Wiki.
Technical Specifications
Power Options
14W | 23W | 45W
Luminous Flux
2.100lm | 3.450lm | 6.750lm
Color Temperature
4000K
Color Rendering Index
CRI >80
Color Consistency
Initial MacAdam 4 SDCM
Mounting
Wall | Ceiling | Pipe | Surface
Housing
Housing made of Polymethyl methacrylate (PMMA)
Dimensions
398x100x100mm (14W) | 709x100x100mm (23W) | 1309x100x100mm (45W)
Protection
IP66 |
IK10 |
Explosion Proof
Light Distribution
CLEAR 120° | OPAL 120°
Controls
ON/OFF Switchable | Emergency
